The brief

Introduction: As part of our commitment to crafting functional and aesthetically pleasing work environments, we present a comprehensive design proposal for the office floor of a prominent textile company. Our approach is centered on fostering collaboration, maximizing natural light, and addressing the specific needs of the organization.

Goals:

  • Foster Open Collaboration: Our primary objective is to cultivate a workspace that encourages communication and collaboration among team members. By strategically removing barriers and implementing transparent glass walls, we aim to create an open layout that promotes synergy and creativity.
  • Optimize Natural Light: Recognizing the importance of natural light in enhancing productivity and well-being, we have integrated expansive glass walls and a false ceiling with spotlights. This design element not only illuminates the space but also creates a vibrant and inviting ambiance conducive to focused work and innovation.
  • Cater to Executive Needs: In alignment with the company's hierarchy, we have dedicated a CEO room equipped with a lounge area, a spacious office, and a large table for showcasing textile samples. This exclusive space provides executives with privacy for important meetings while reflecting the company's identity and values.
  • Enhance Meeting Efficiency: We have strategically positioned meeting rooms adjacent to executive offices, the COO office, and the technical office. This strategic placement ensures convenient access for all employees and facilitates seamless collaboration, decision-making, and project management.

Challenges:

  • Privacy and Sun Exposure Management: One of the main challenges encountered was balancing the need for openness with the requirement for privacy and sun protection. To address this, we incorporated a significant number of shutter curtains, offering flexibility for individual office spaces to adjust privacy levels and mitigate sun exposure as needed.
  • Flexibility for Small Meetings: Another challenge was to provide a solution for impromptu or small private meetings without disrupting the overall workspace dynamics. To overcome this obstacle, we devised movable wooden foldable partitions, offering a quick and efficient way to create temporary enclosed spaces while minimizing noise disturbance.

Conclusion: In conclusion, our design proposal for the office floor of the textile company aims to redefine the traditional workspace by promoting collaboration, harnessing natural light, and catering to the diverse needs of employees and executives alike. By addressing key challenges and incorporating innovative solutions, we are confident that our design will not only meet but exceed the expectations of our esteemed client.

Inside this project

  • Concept brief
  • Mood board selection
  • 2D design and drafting
  • 3D modeling
  • 3D Rendering and Visualization

Process disclosure

AI use

Selectively applied

Note on process — AI tools were used selectively to refine the visual quality and detail of the renderings shown on this page. The design itself was developed through extensive iterative 2D sketching and 3D modeling; the final output reflects manual design intent at every stage. AI is applied as a finishing aid, not as a starting point.

Mood Board

Reference interiors, mapped to the plan

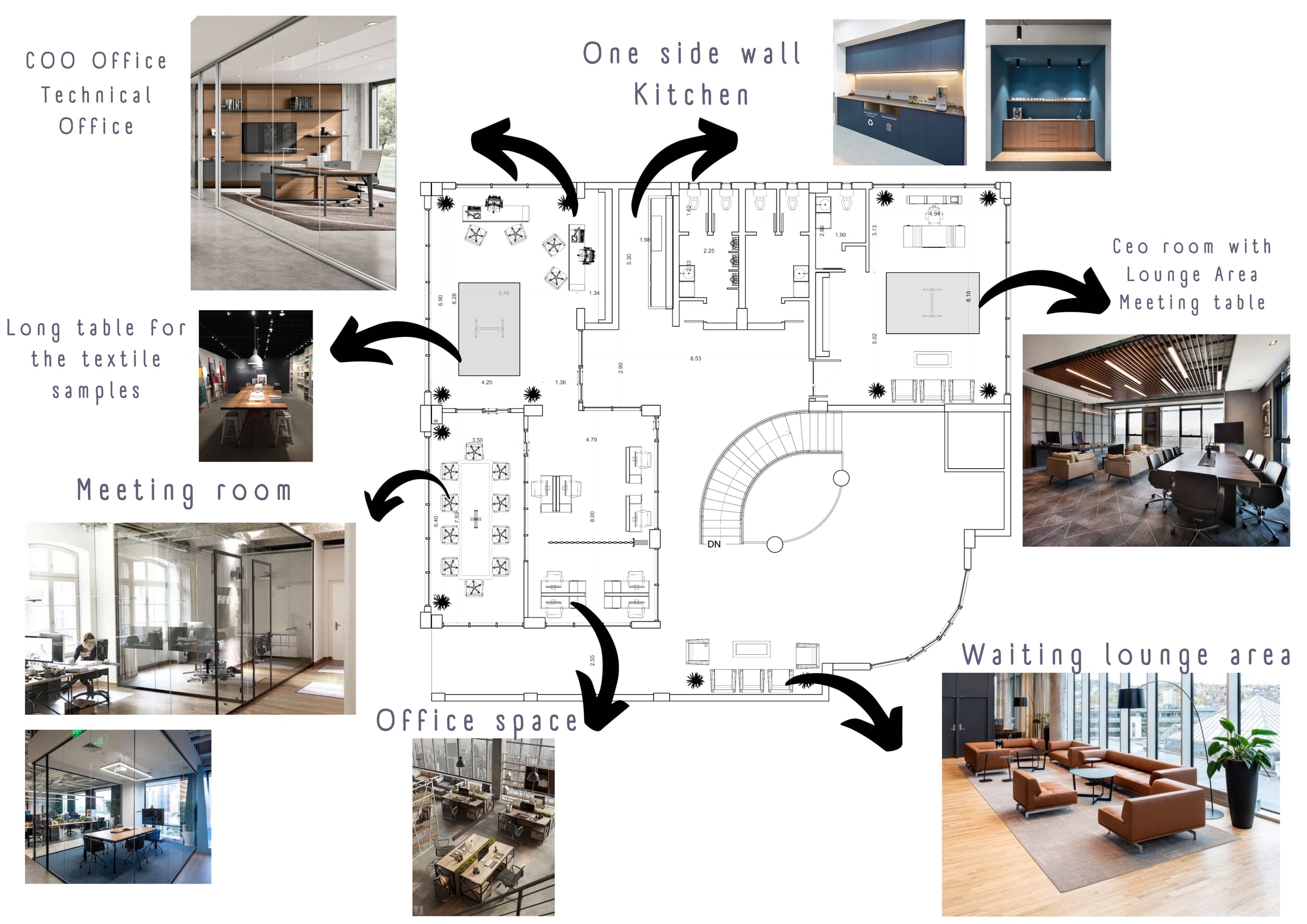

Collage pairing the floor plan with reference interiors for each programme — CEO room with lounge area, COO and technical offices, meeting room, kitchen, foldable-partition pods, long textile-sample table and the waiting lounge. The visual brief the proposal was developed against.

Wagdy Moamen — moodboard collage mapping reference interiors (CEO room, COO office, meeting rooms, kitchen, lounge, foldable partitions, textile sample table) onto the floor plan
Moodboard · reference interiors mapped to the plan

2D Design & Drafting

Plans, demolition & furniture set

Coordinated 2D drawing set for the textile company HQ — existing floor plan, demolition strategy, columns survey, furniture layout, and axonometric views of the furniture and wall scheme. Drawn at 1:100.

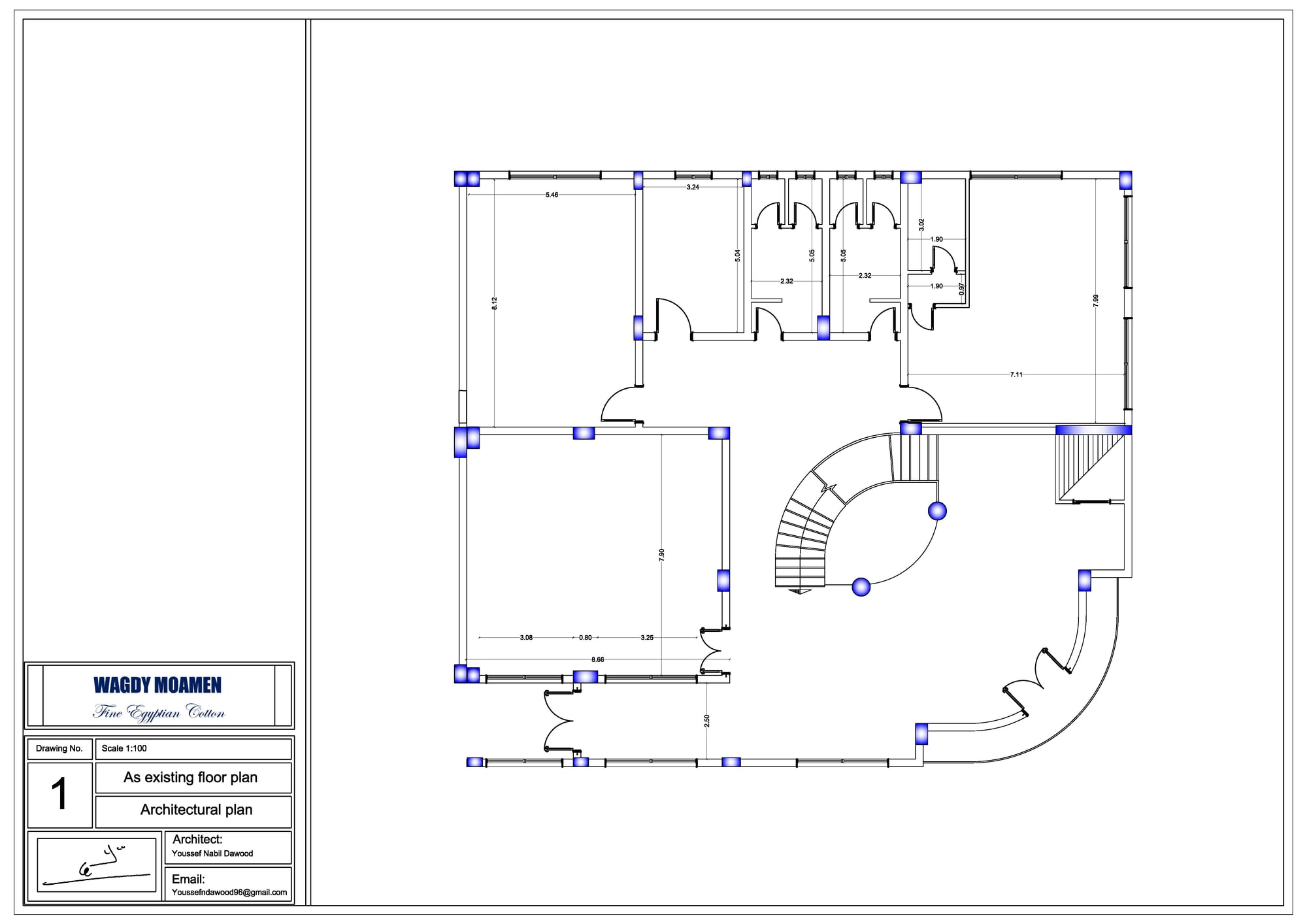

Wagdy Moamen — existing architectural floor plan, as surveyed
01 · Existing floor plan

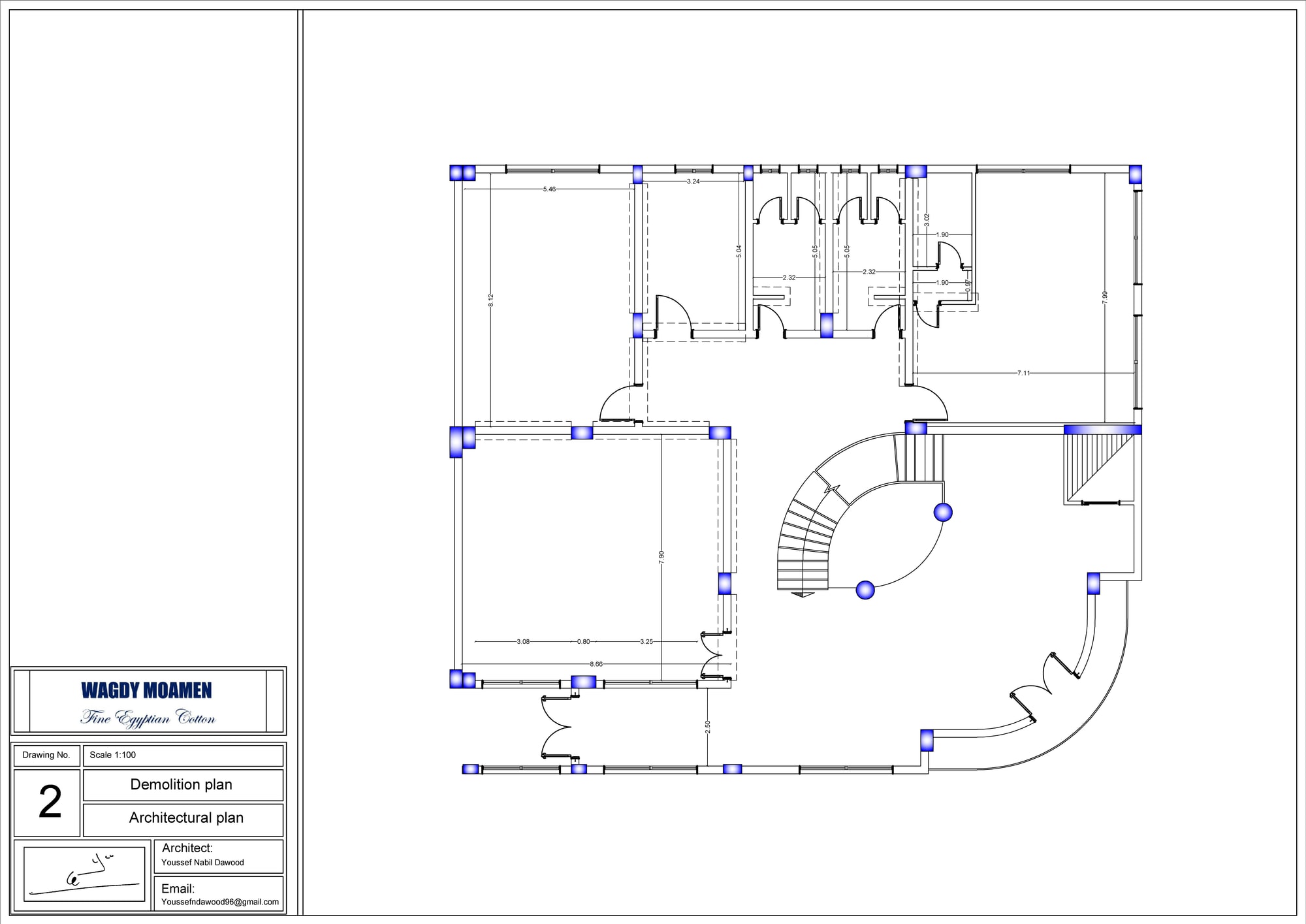

Wagdy Moamen — demolition plan
02 · Demolition plan

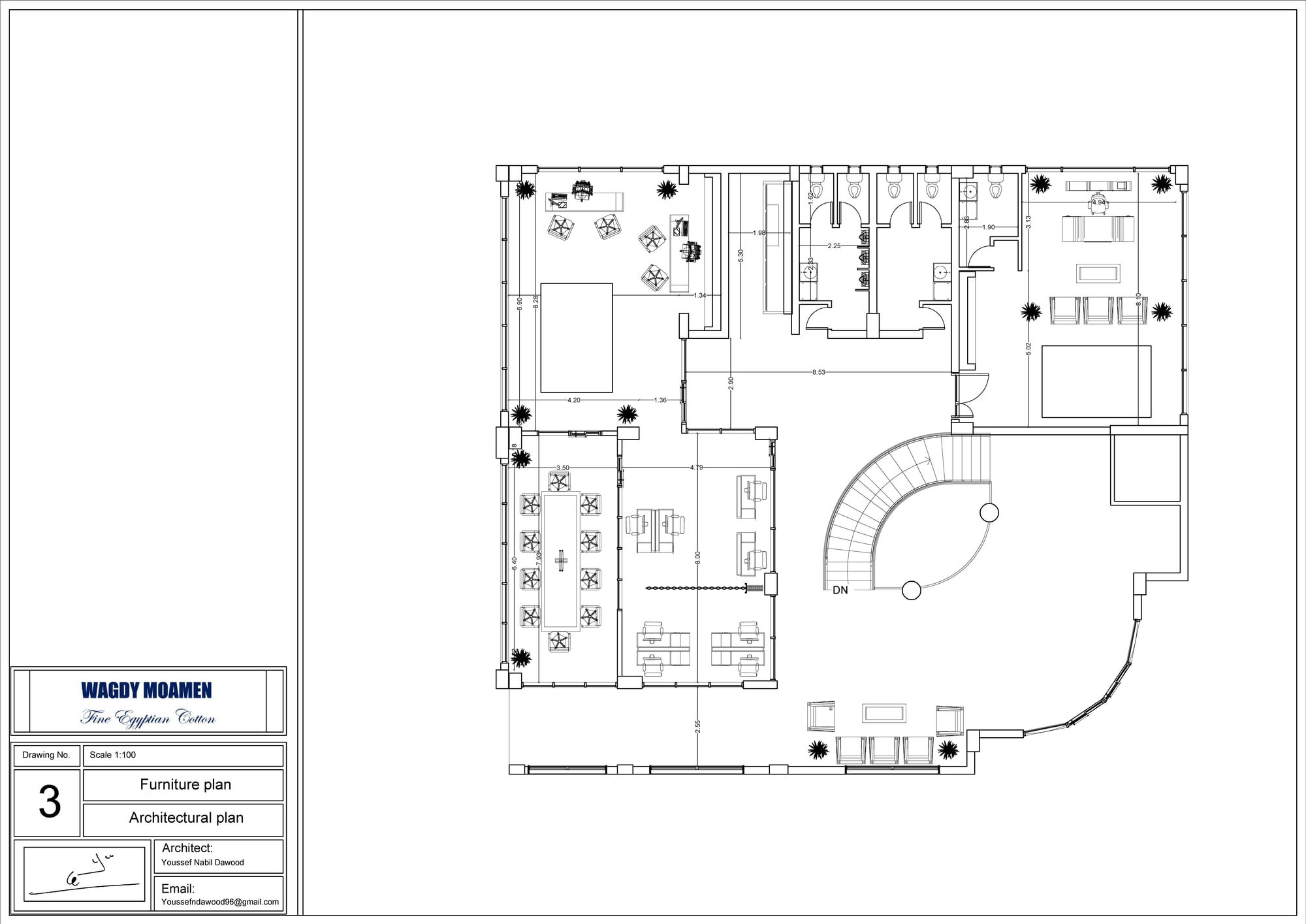

Wagdy Moamen — furniture plan
03 · Furniture plan

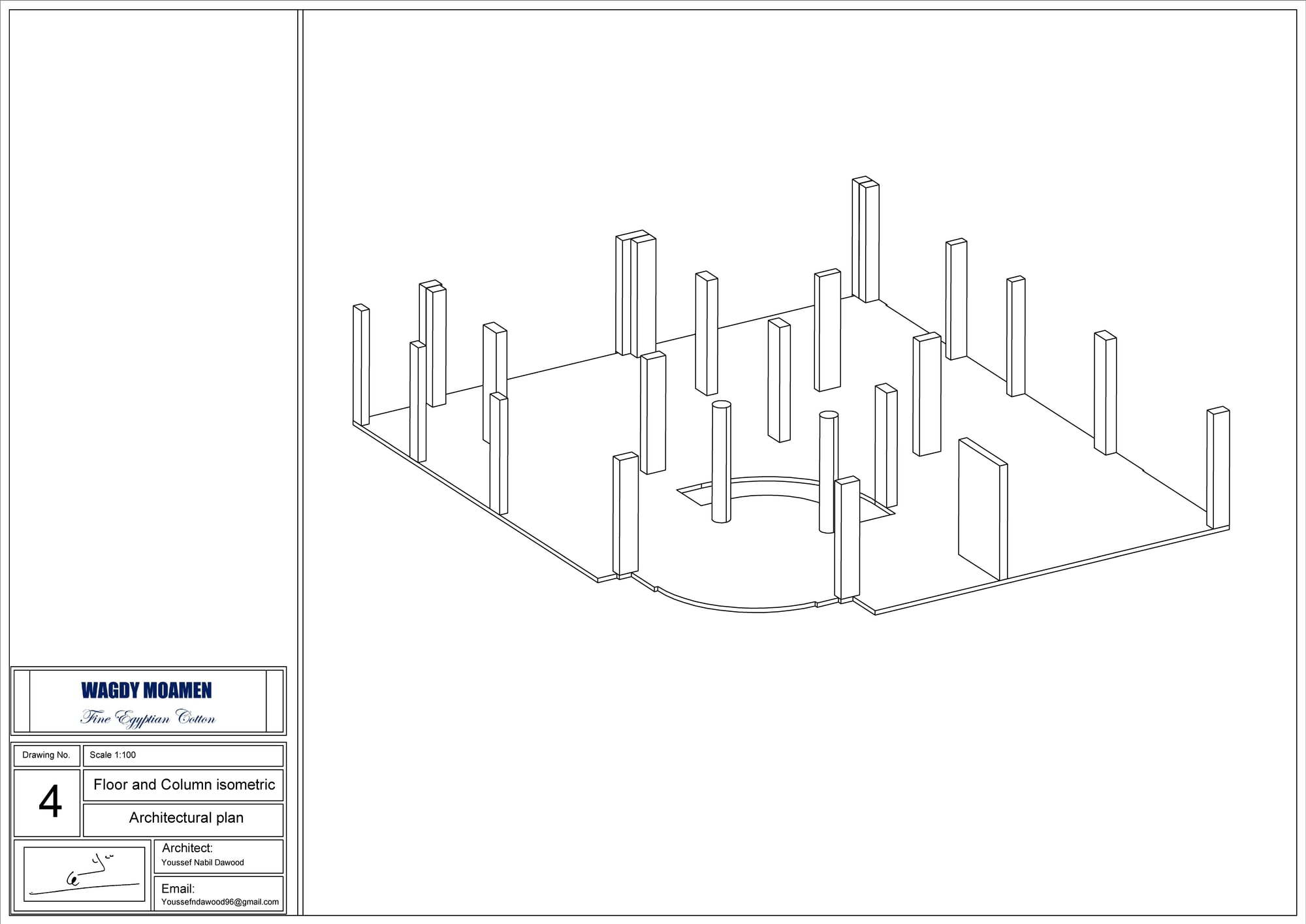

Wagdy Moamen — floor columns plan
04 · Floor + columns plan

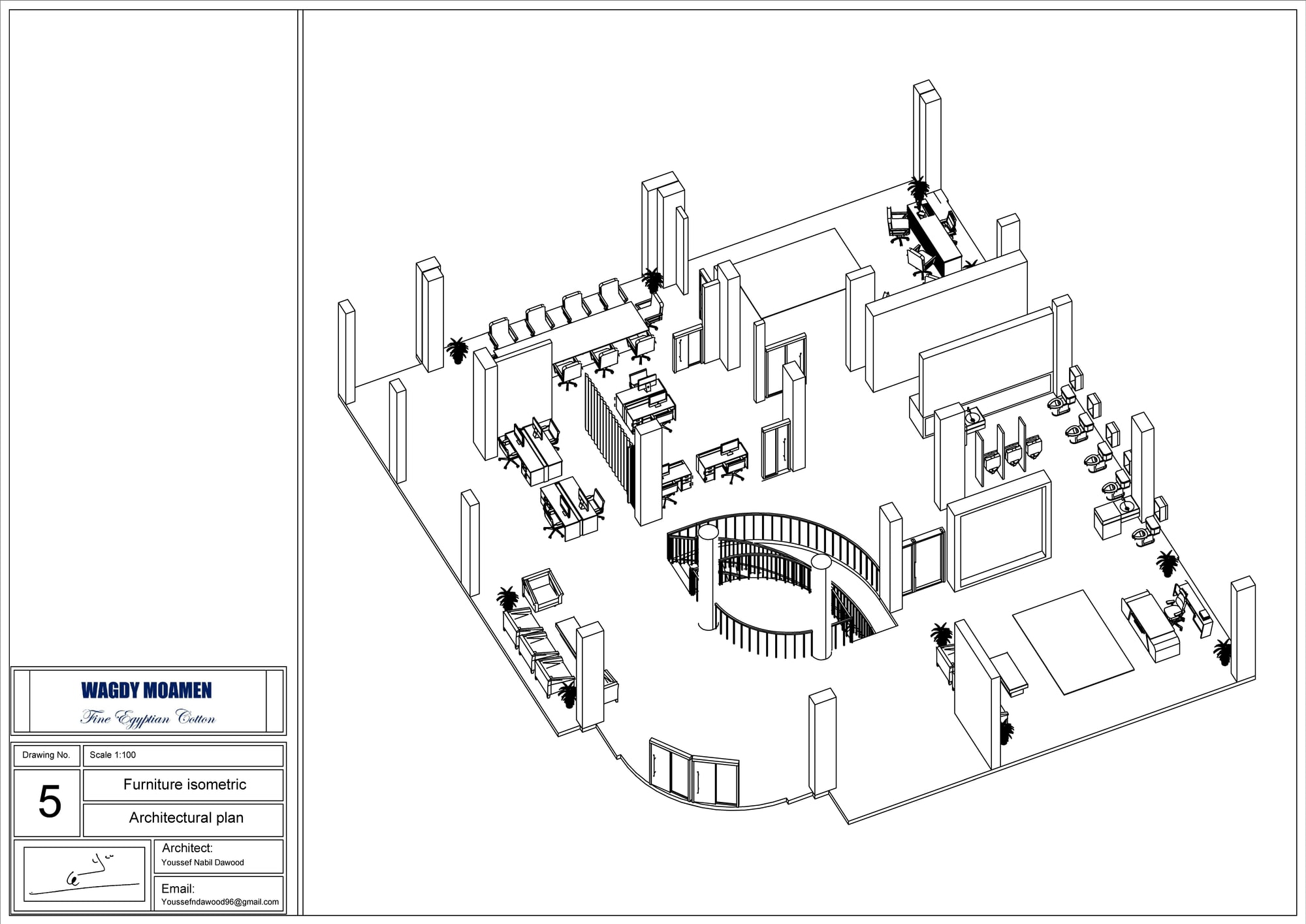

Wagdy Moamen — isometric furniture plan, axonometric view
05 · Isometric — furniture

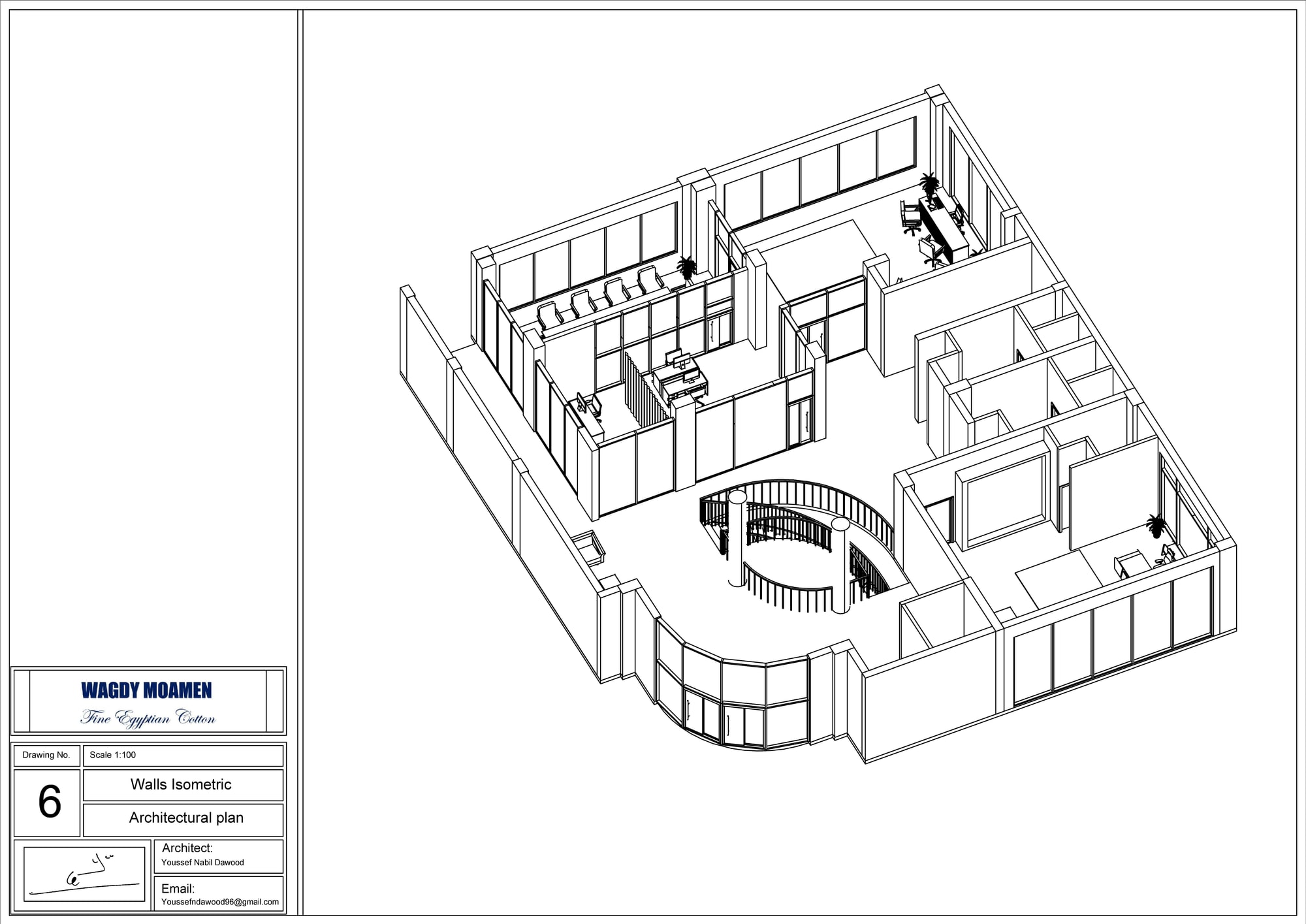

Wagdy Moamen — isometric wall plan, axonometric view
06 · Isometric — walls

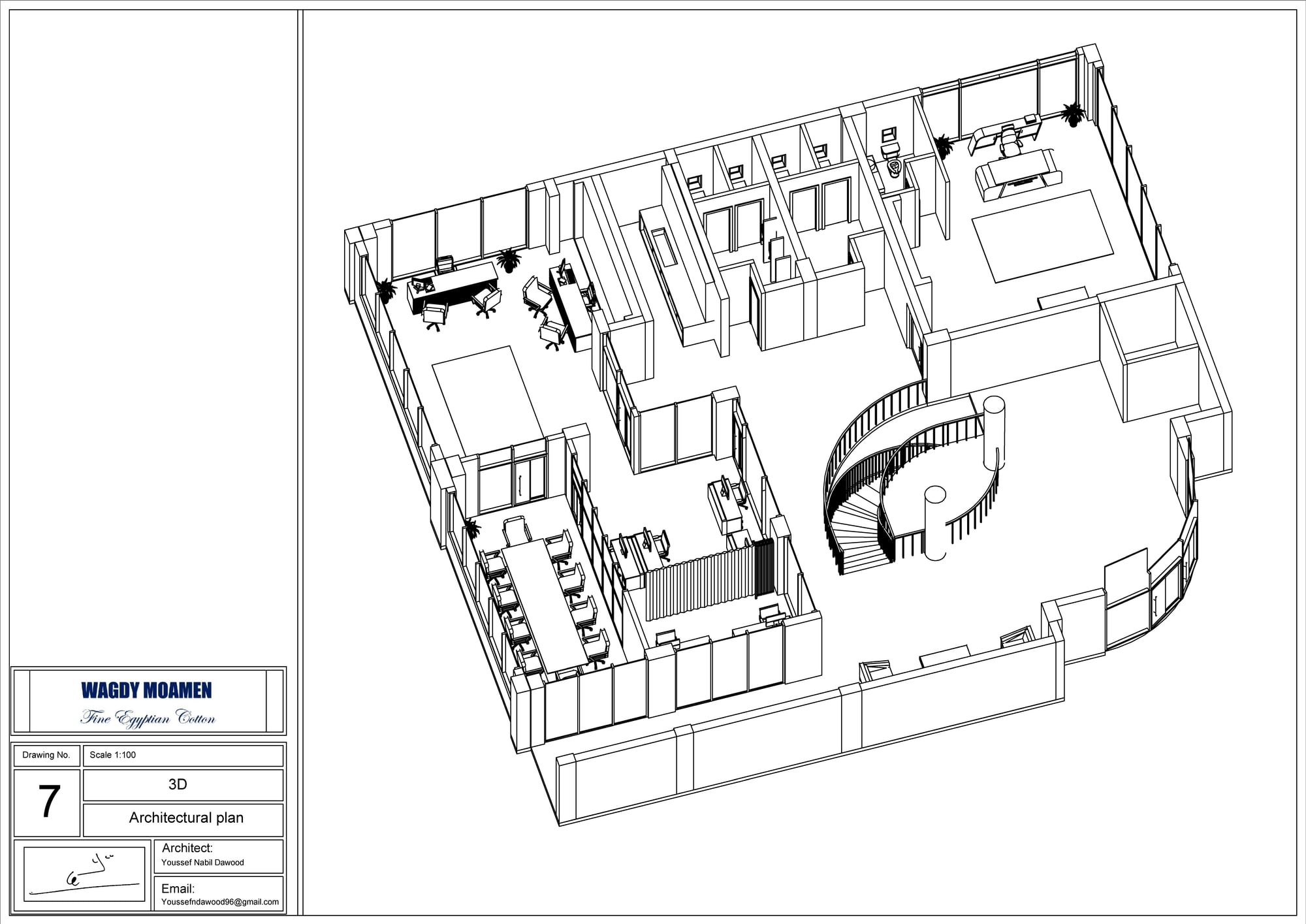

Wagdy Moamen — 3D plan, axonometric view of the proposed scheme
07 · 3D plan

3D Render

Model to render

Viewport from Revit to render. Each pair sets the untextured 3D model on the left, next to its final photoreal render on the right — the proposal as modeled, then as visualised.

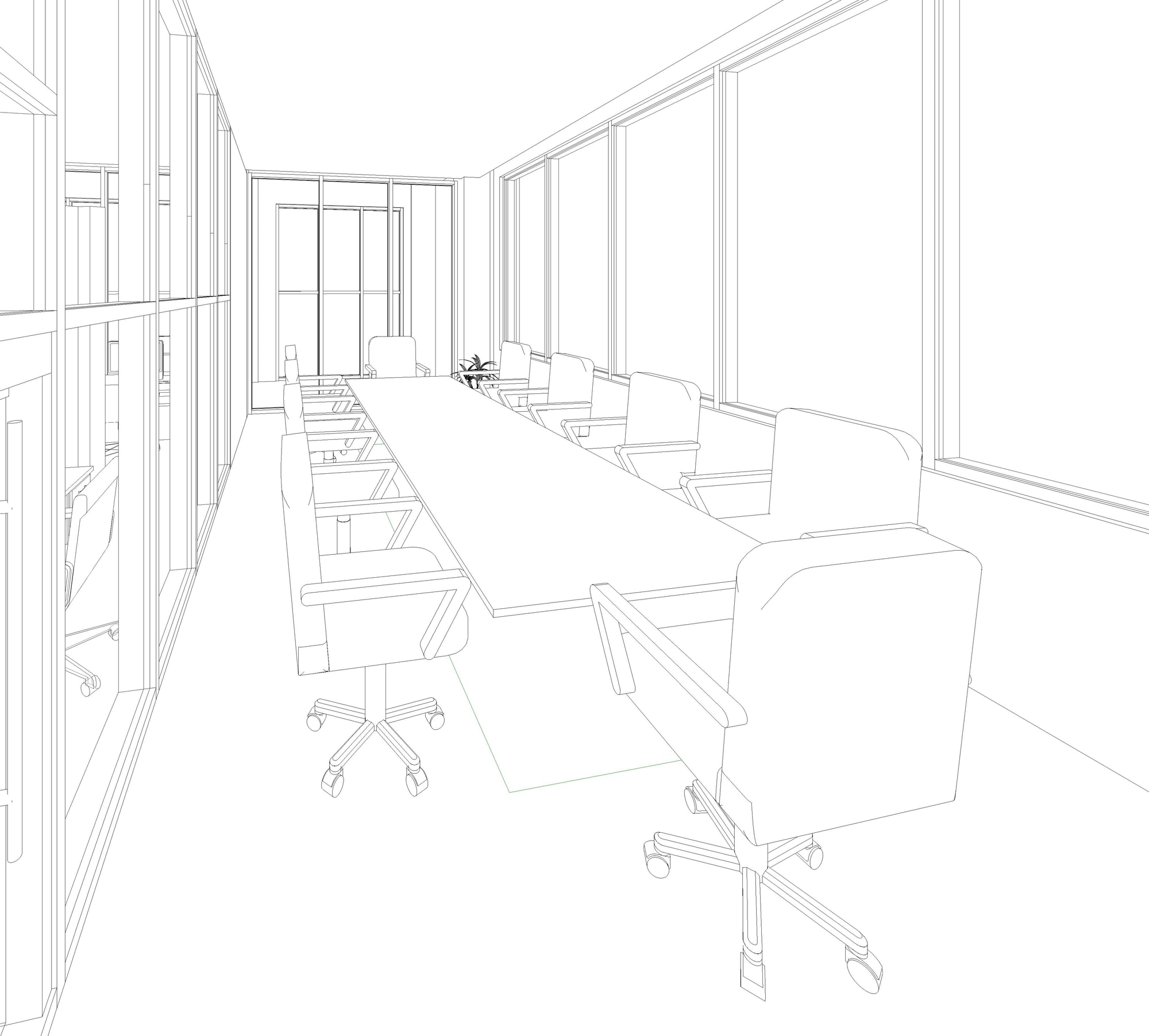

Wagdy Moamen — meeting room, 3D model wireframe in Revit before rendering
Meeting room · model
Wagdy Moamen — meeting room, final photoreal interior render with cream chairs, wood table and floor-to-ceiling windows
Meeting room · render

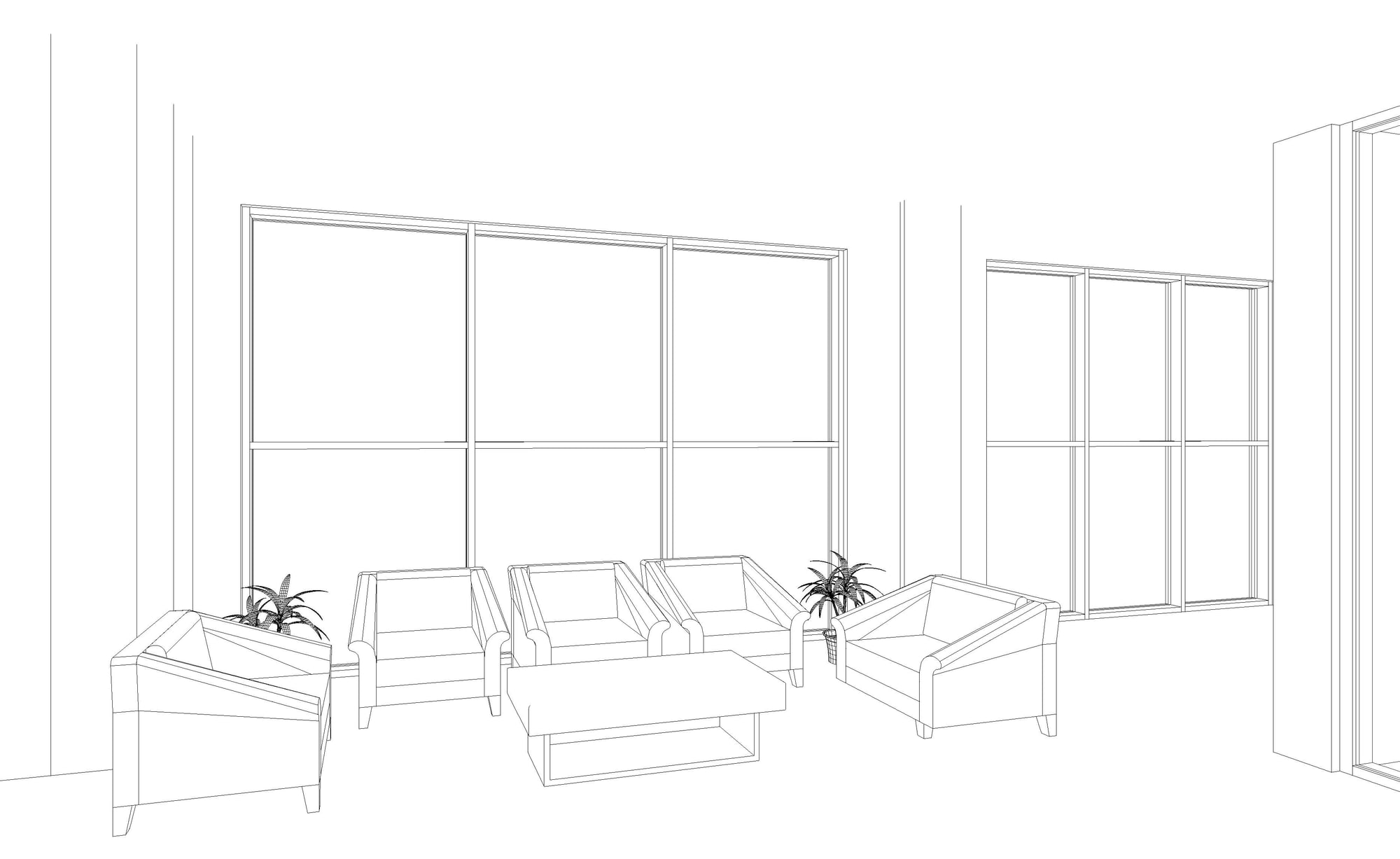

Wagdy Moamen — lounge / waiting area, 3D model wireframe in Revit before rendering
Lounge area · model
Wagdy Moamen — lounge / waiting area, final photoreal interior render with cream armchairs and wood coffee table
Lounge area · render

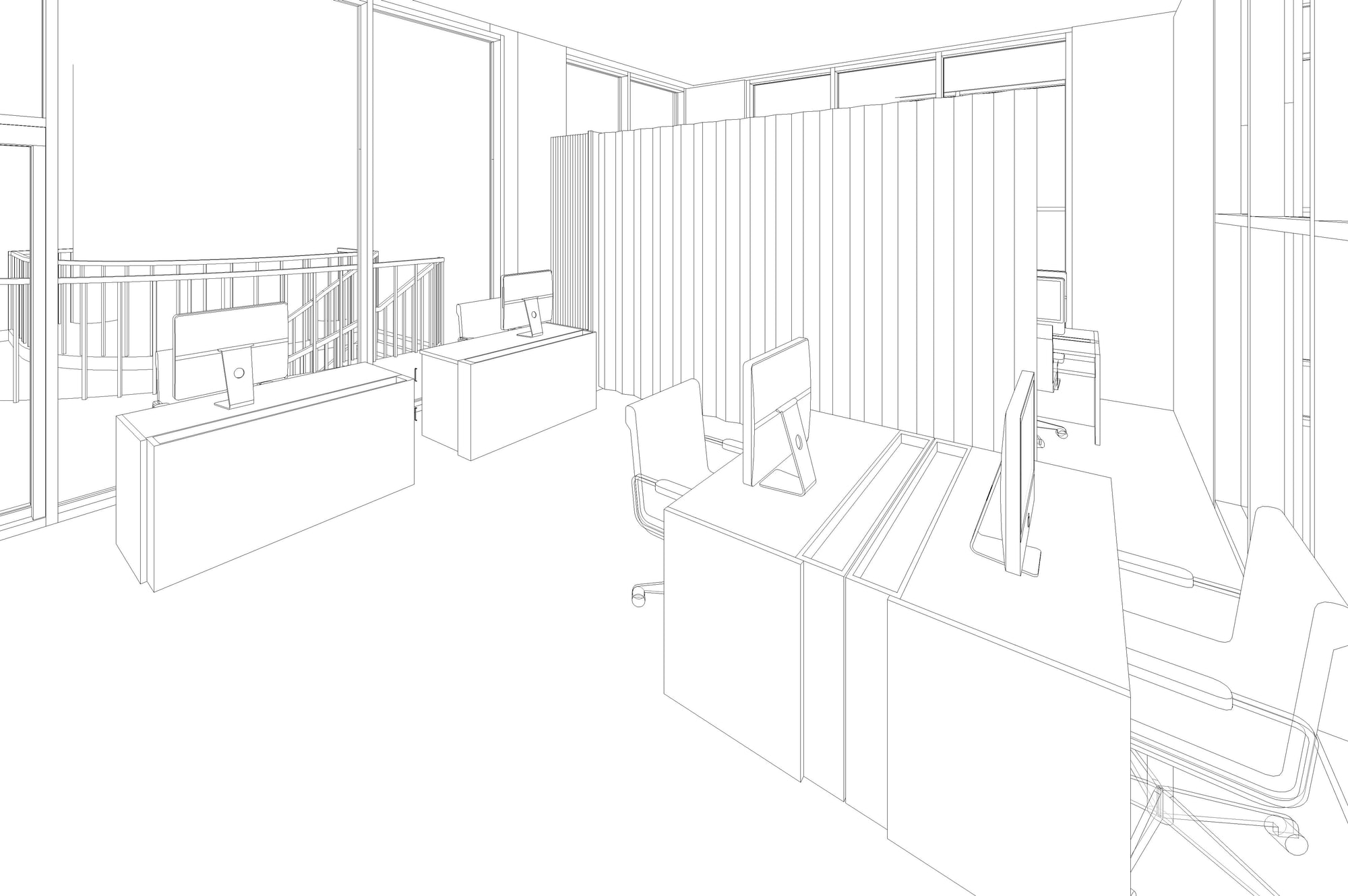

Wagdy Moamen — open office space, 3D model wireframe in Revit before rendering
Office space · model
Wagdy Moamen — open office space, final photoreal interior render with light-wood desks, black task chairs, vertical wood-slat partition and floor-to-ceiling windows with blinds
Office space · render

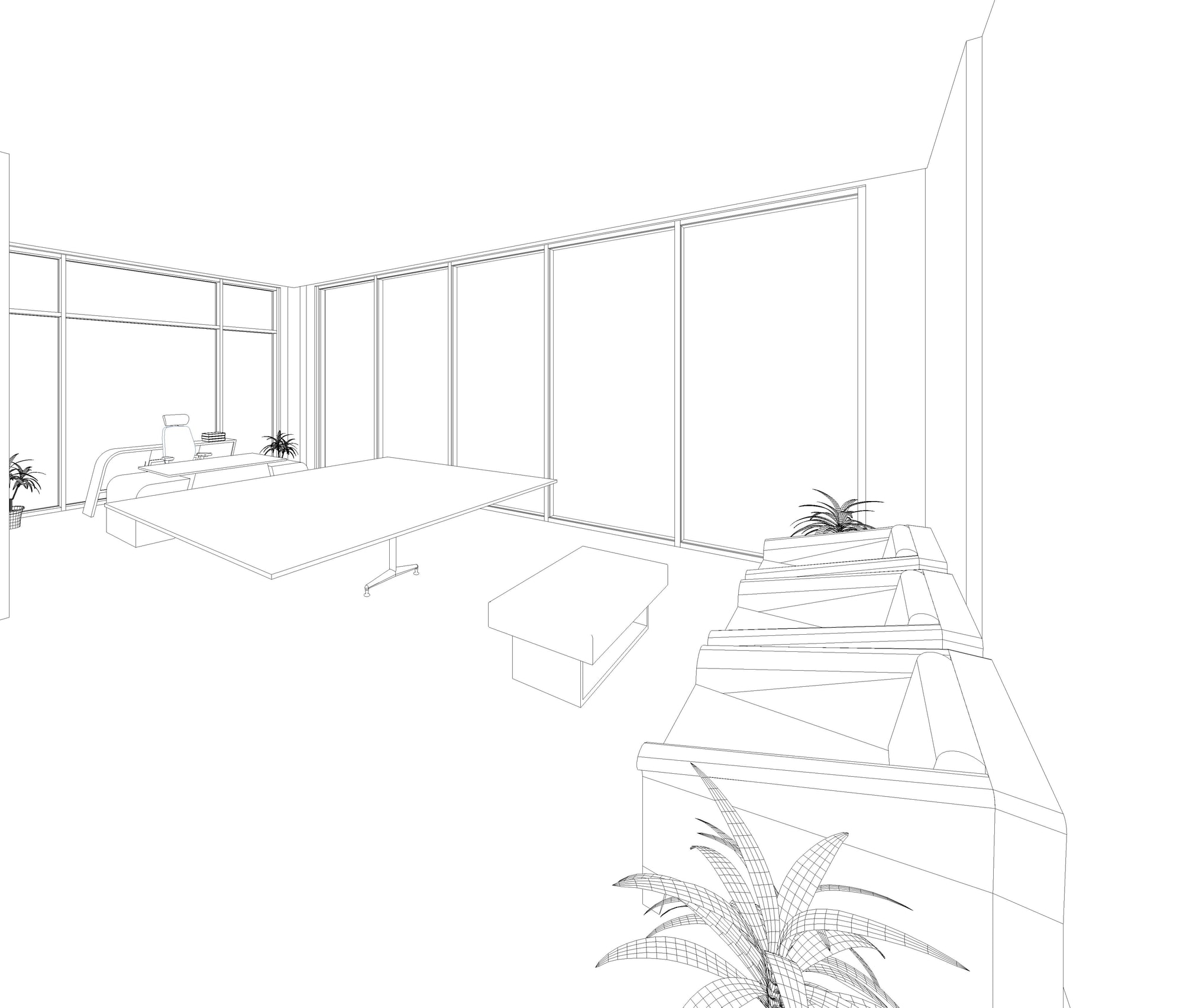

Wagdy Moamen — CEO room, 3D model wireframe in Revit before rendering
CEO room · model
Wagdy Moamen — CEO room, final photoreal interior render with executive desk, lounge seating, long table for textile samples and floor-to-ceiling windows overlooking the textile complex
CEO room · render

Video Rendering

Walkthrough — through the space

A continuous walk through the proposed scheme — meeting room, lounge area, open office and CEO suite — showing the architectural sequence the way a visitor would experience it. Use the controls to play.

Modeled with Revit · Rendered with D5
